Concertina Coils

Concertina Coils
Concertina Coils
Product Code : 06
Product Specification

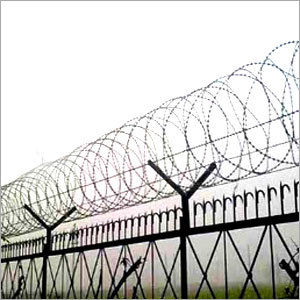

Our organization is actively involved in the making of strong Concertina Coils. We are counted among the prominent Concertina Coils Manufacturers, Suppliers and Exporters in Mandi Gobindgarh, Punjab. Punched Tape Concertina Coils can be easily retracted and stored vertically or horizontally. The coil when laid, look like a continuous spring. The arrangement provides protection against intrusion. Total running length of wire in a 1050 mm coil is approximately 167meters. After expanding, the effective coil length is approximately 8 to 10 meters and the width of approximately 980mm each. Each 1050 mm coil is provided with two pairs of handles for easy handling and lying. The coil can also be supplied purposes in 1000, 750, 600 and 450 mm diameters. We offer the Concertina Coils in double helical shape too. Clients can avail the wide assortment of Concertina Coils from us at very competitive prices.

Features Of Concertina Coils

  • Finest quality material used in the making
  • Precise engineered
  • Corrosion-resistant
  • Strong and durable

Technical Specifications

  • Thickness of the spring core GI wire : 2.50 +
  • Thickness of the tape punched tape : 0.5mm +
  • Height of Concertina Coil is 610mm or 2 Feet
  • 125 to 127 clip is attach with per coil
  • 49 to 50 Circe of Wire in One Coil
  • 6 to 6.5 meters running length of per coil
  • Equipment (1 running meter = 15 meters to 16 meters = 1.35 Kg)
  • Installation four wire attach over concertina coil
  • Packing material weight per coil 400-450 gm
  • Size of Concertina Coil 450/610/750/1050

Availability

  • Coil Size 450 mm, weight in coil 6.250gm to 6.350gm with packing meters 71 Spiral 49/50
  • Coil Size 610 mm, weight in coil 9.400gm to 9.500gm with packing meters 94 Spiral 49/50
  • Coil Size 750 mm, weight in coil 11.600gm to 11.700gm with packing meters 117 Spiral 49/50
  • Coil Size1050 mm, weight in coil 14.500gm to 15.500gm with packing meters 164 Spiral 49/50
  •

1.

Wire Size 12 x 12 Gage.

1.

Wire Size 12 Gage.



2.

Used in 325 feet.



2.

Used in 325 feet.

3.

Barb on 4 inch (100 mm).



3.

Barb on  inch(19 mm).

4.

Cutting Easy by pliers.



4.

Not cutting easy by pliers.

5.

Hot Dip Galvanized Wire.

5.

Wire Hot Dip Galvanized Wire.



6.

Man & Animals Easily cross on the wire.

6.

Man & Animals cannot cross wire.

7.

Low security.

7.

High security.

8.

Man & Animals are easily touching it.

8.

If any person or Animal touches the wire they could be angered their body & loss their blood.

9.

Every person touch this wire again & again.

9.

Every person never touches this wire in future.

10.

This wire used only Seven States in INDIA.

10.

Most of all states are use concertina wire & also use in other countries for high security.

11.

This wire only use for farmers for their farms.

11.

This wire use any type of industries, Airports, rice sellers, Jails, Hospitals, Army, B.S.F. , Institutes, Railway Etc. for security purpose.

12.

Use Material TATA  M S.WIRE.

12.

This is High Tensile Wire.

13.

Weight of Wire 15.500gm in  325

13.

Weight of Wire 9.300gm in  325
